* Note: All the wire length above is the original length, not the length you see from the outside.

Important note:

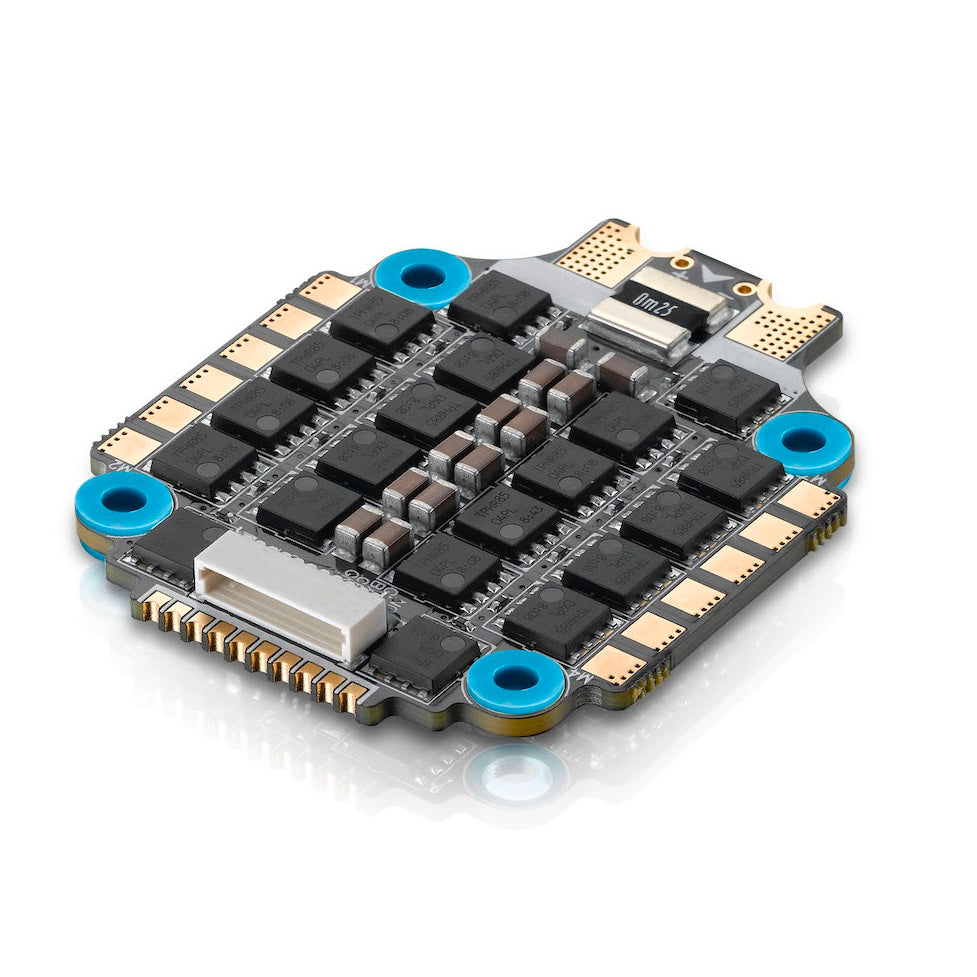

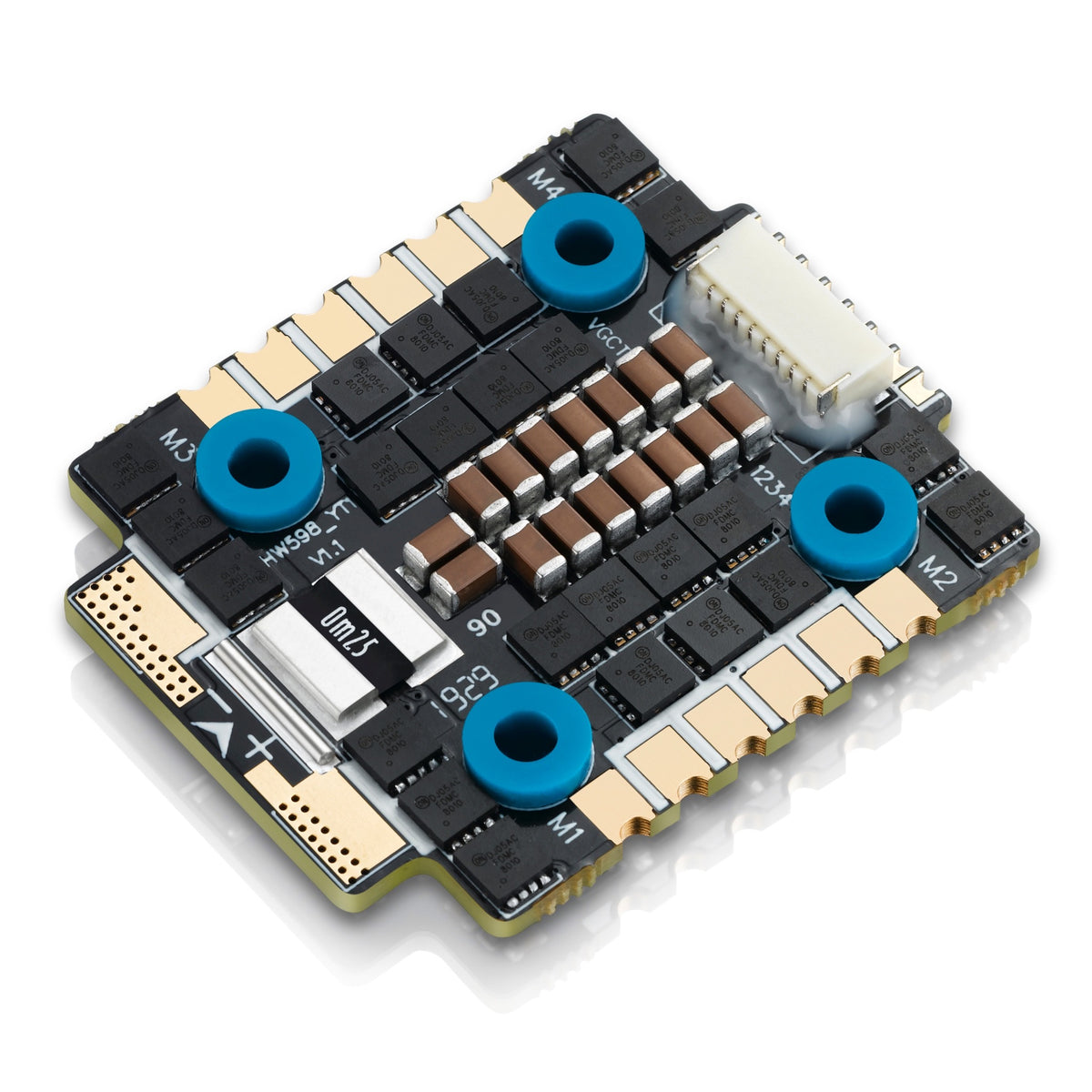

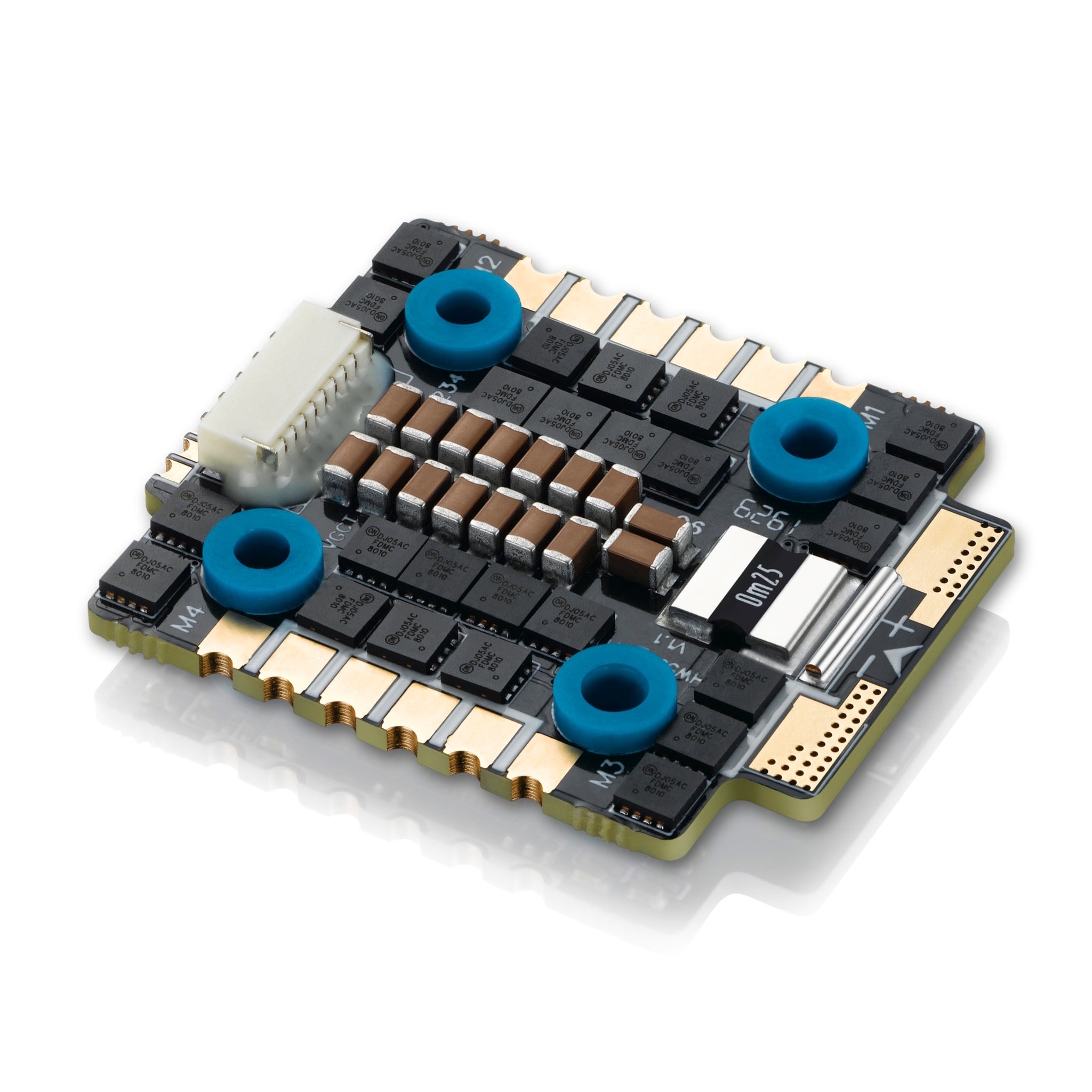

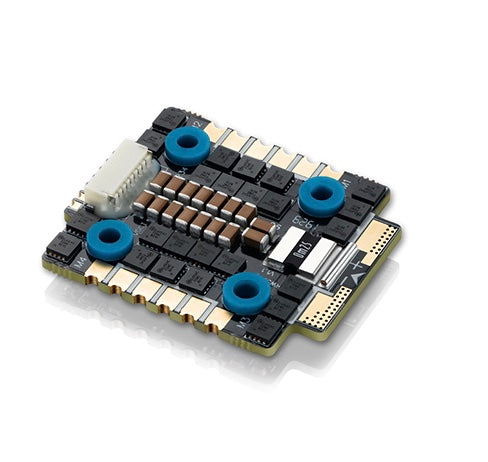

1. Power capacitor must be installed.  Every Xrotor 45amp 4-1 includes 2 power capacitors. One larger, and one smaller.   The larger capacitor should be used for 5s-6s lipo, the smaller capacitor can be installed for 4s-5s lipo directly on the PCB (ESC), not by a power plug.  Failure to use the included power capacitors will result in damage to your ESC.

2. AM32 settings can cause damage. Default settings should be used.

3. Motor KV ratings and prop size/pitch combinations recommendations.
- 4s Lipo using 5 inch props up to 2700KV
- 5s using 5 inch props, up to 2450 KV
- 6s using 5 inch props up to 1750 KV

Download

 Manual Download > XRotor FPV 45A ESC.pdf
